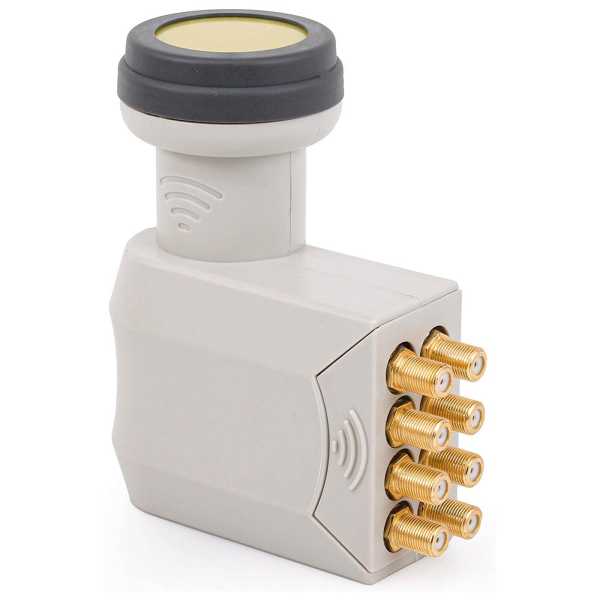

AX Mimic Sun Protect Octo LNB 0.1 dB 4K UHD LTE Filter for 8 Participants

The new AX Mimic Sun Protect Octo LNB with only 0.1dB noise figure, LTE filter, gold-plated connections, low power consumption, excellent signal quality, and UV-resistant weatherproof housing is characterized by top quality.

High-quality 8-way LNB with LTE filter and only 0.1dB noise figure. Even in bad weather conditions, the AX LNB won't let you down. The patented Sun Protect LNB cap is extremely heat resistant (-40°C ~ 70°C). The 8-way AX LNB supports all common formats, whether full HD, 4K, or the SD format. Suitable for satellites such as Astra, Hotbird, Türksat, Sirius, Eutelsat etc.

Thanks to high-quality and patented technology, the AX LNB has very low power consumption. In addition, it is very stable in terms of frequency, has low phase noise, and has a high level of cross-polarization isolation. Thanks to high-quality workmanship, the LNB is 100% waterproof. Thanks to the clever design, the F-plug connections are also protected from the weather.

All AX LNBs are checked for quality and functionality.

Features
- extremely cold and heat resistant (-40 °C ~ 70 °C, can withstand up to 95% humidity)
- gold-plated connections
- low energy consumption
- suitable for 4K/UHD, HD, and SD reception
- excellent workmanship
- low noise figure
- low phase noise
- high cross-polarization isolation
- high-frequency stability
- Extendable weatherproof housing
- waterproof (100% tested)

Technical Info
- Input Frequency Range: High-band 10.70 ~ 12.75 GHz
- Output Frequency Range: High-band 950 ~ 2150 MHz
- Consumption (DC): 210 mA (typical)
- Operating Temperature: -40/+ 70 °C
- Signal Gain: 53 - 60 dB
- Cross Pol. Isolation: 20 dB
- Noise Figure: 0.1dB
- Outputs: 8

Delivery
1x AX Mimic Sunprotect Octo LNB for 8 Participants

Item no.: LNBOCT023

WEEE-Number 82440792
